Factory supply welding rod e308L-16/welding electrode sunlu brand

FOB Reference Price:Get Latest Price
$2.00 - $3.00 / Ton | 1 Ton/Tons (Min. Order)
Diameter:
2.5mm,3.2mm,4.0mm,5.0mm
Length:
250mm,300mm,350mm,400mm,450mm
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
SUNLU
Model Number:
E308L-16,Stainless steel
Material:
Stainless Steel
Operating Current:
40-230A
Welding Current:
40-230A
Operating Temperature:
-30℃-40℃
Application:
Welding materials
Usages:
Welding Stainless steel plate and structure
Color:
Grey,black,green,white,red
Supply Ability
Supply Ability:
6000 Ton/Tons per Year

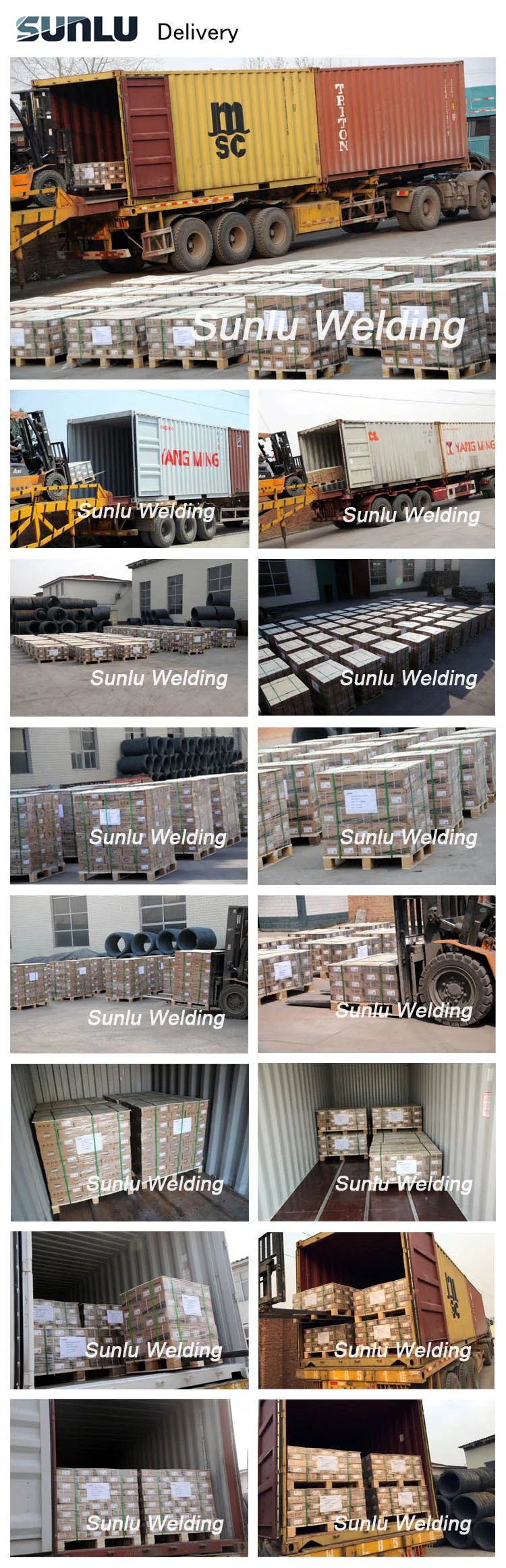

Packaging & Delivery
Packaging Details
2.5mm: 2.5kg/box, 20kg/carton,2 tons/ pallet. 3.2mm:5kg/box, 20kg/carton, 2 tons/ pallet. 4.0mm:5kg/box, 20kg/carton, 2 tons/ pallet. 5.0mm:5kg/box, 20kg/carton, 2 tons/ pallet.
Port
Tianjin

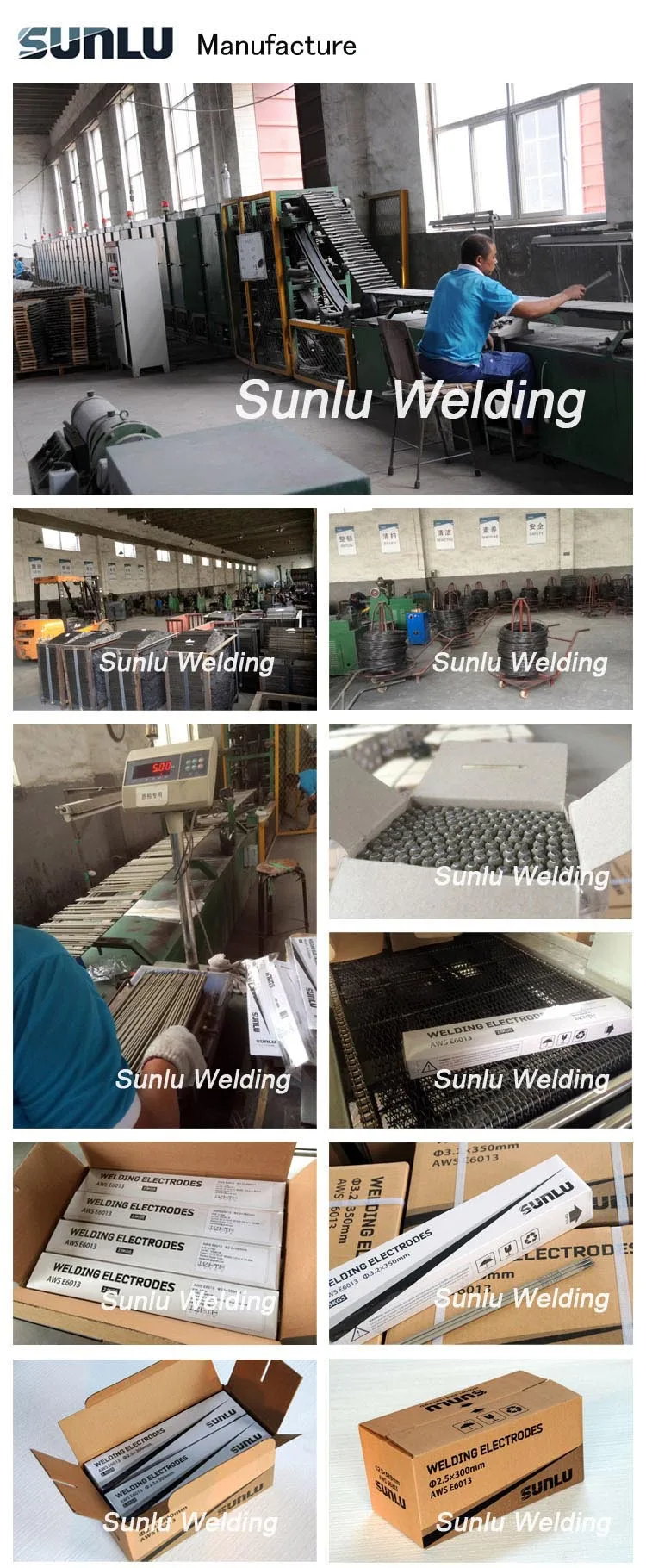

We are factory!





Shijiazhuang Shuanglu Machinery Co., Ltd.("Shuanglu" and "SUNLU" for short), as a member of China Welding Association (CWA) and one of the appointed manufacturers of China National Electric Equipment Corporation (CNEEC),  manufactures complete welding electrode product.





Packing:



3.2mm:5kg/box, 20kg/box, 2 tons/pallet.

4.0mm:5kg/box, 20kg/box, 2 tons/pallet.

5.0mm:5kg/box, 20kg/box, 2 tons/pallet.

Or Customize!



Our factory supply:



AWS E6013,E7018,E6011, E6010,E308L-16 welding electrode and mig wire!



Market:



So far exported to Japan, Saudi Arabia, Qatar, USA,Brazil,Ukraine,Kenya,Thailand, India .etc.





Introduction:



E308L-16 is a kind of ultra-low-carbon Cr18Ni12Mo2 stainless steel electrode with lime-titania type coating. The carbon content of the deposited metal is lower than or equal to 0.04%. It has excellent heat-resistance, corrosion-resistance, crack-resistance, blowhole-resistance and welding performance. The coating has red-resistance and high strength. AC/DC.



Uses:



Used for welding equipment of urea, synthetic fiber, etc. and stainless steel structures of the same types, and also used for Cr stainless steel which does not need heat treatment after welding, composite steel, dissimilar steel, etc.



Chemical Composition of Deposited Metal (%)

Chemical Composition

C

Mn

Si

S

P

Ni

Mo

Cr

Guarantee Value

≤0.04

0.5~2.5

≤0.90

≤0.020

≤0.030

11.0~14.0

≤0.75

17.0~20.0


Mechanical Properties of Deposited Metal

Test Item

Rm(MPa)

A(%)

-196℃ KV2(J)

Guarantee Value

≥490

≥30

≥32


Reference Current
(AC, DC+)

Electrode Diameter(mm)

φ2.0

φ2.5

φ3.2

φ4.0

φ5.0

Welding Current (A)

25~50

50~80

80~110

130~160

160~200


Instructions:
1.The electrodes should be baked under 250-300
for an hour before welding.
2.Direct current had better be used and the current should not be too strong.
