We are factory!
Shijiazhuang Shuanglu Machinery Co., Ltd.("Shuanglu" and "SUNLU" for short), as a member of China Welding Association (CWA) and one of the appointed manufacturers of China National Electric Equipment Corporation (CNEEC), manufactures complete welding electrode product.
Packing:
2.5mm:2.5kg/box, 20kg/box, 2tons/pallet.
3.2mm:5kg/box, 20kg/box, 2 tons/pallet.
4.0mm:5kg/box, 20kg/box, 2 tons/pallet.
5.0mm:5kg/box, 20kg/box, 2 tons/pallet.
Or Custom !
Our factory supply:
AWS E6013,E7018,E7016,E6011,E6010,E308L-16,E316L-16 welding rods and mig wire!
Market:
So far exported to Sri Lanka,Japan, Saudi Arabia,Qatar,USA, Brazil, Ukraine,Thailand,Philipines,India,Pkistan,etc.

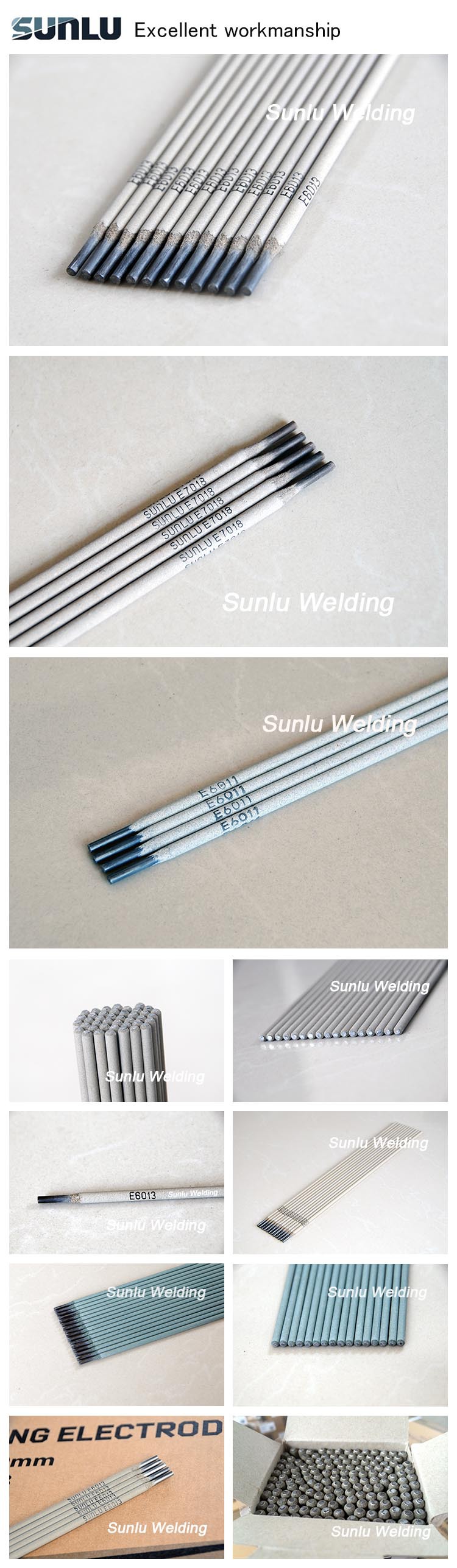

SUNLU brand 300-450mm length electrode welding rod
Notes on Usage:
1. Dry the electrodes at 70~100 (158~212 ) for 30~60 minutes before use.
2. Pay attention not to exceed the range of proper currents.
Chemical Composition | C | Mn | Si | S | P |
Guarantee Value | ≤0.12 | 0.3-0.6 | ≤0.35 | ≤0.035 | ≤0.040 |
Mechanical Properties of Deposited Metal
Test Item | Rm(MPa) | ReL(Mpa) | A(%) | KV2(J) | KV2(J) |
Guarantee Value | ≥420 | ≥330 | ≥17 | -(normal temperature) | -(0℃) |
Reference Current (AC, DC)
Electrode Diameter(mm) | φ2.0 | φ2.5 | φ3.2 | φ4.0 | φ5.0 |
Length(mm) | 300 | 300(350) | 350 | 400 | 400 |
Welding Current (A) | 40~70 | 55~95 | 80~130 | 120~180 | 160~230 |
V-up, OH | 35~60 | 45~90 | 60~120 | 100~160 | 120~200 |
X-ray Radiographic Inspection:ⅡDegree
More detailed and photos, please be free to contact !
